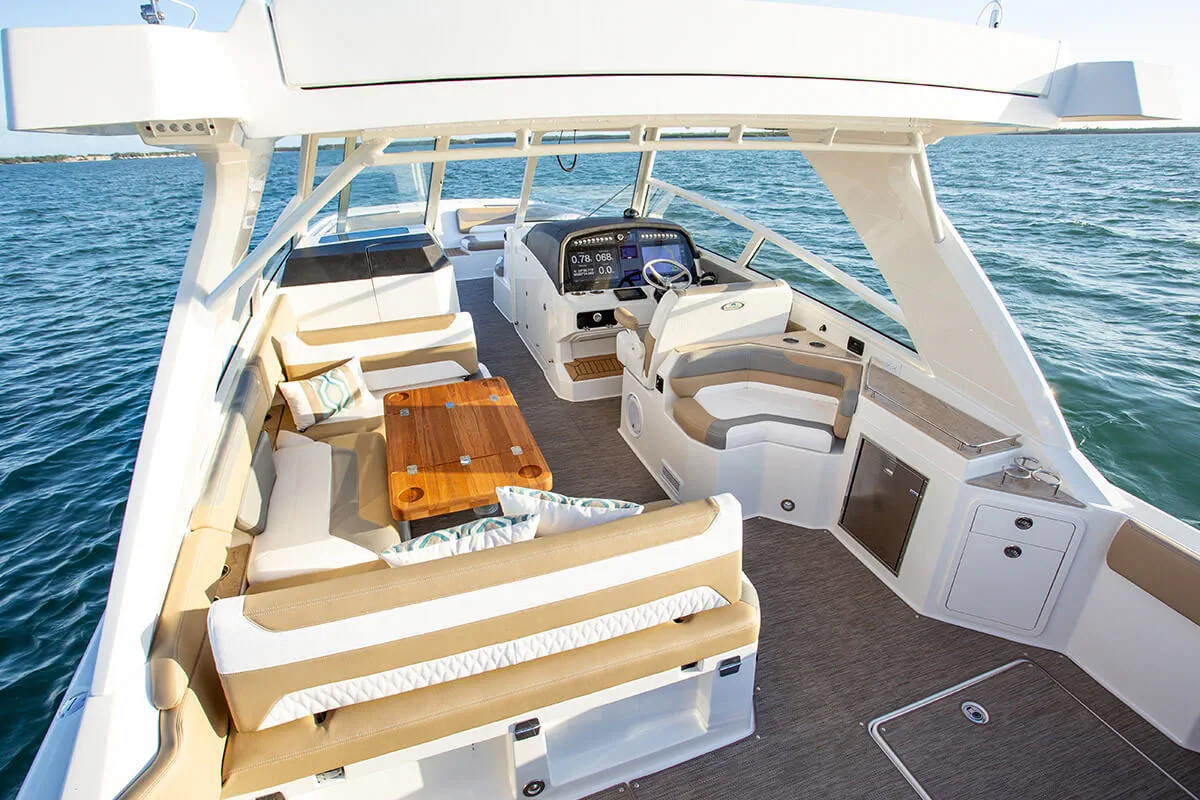

Deck
200 square feet

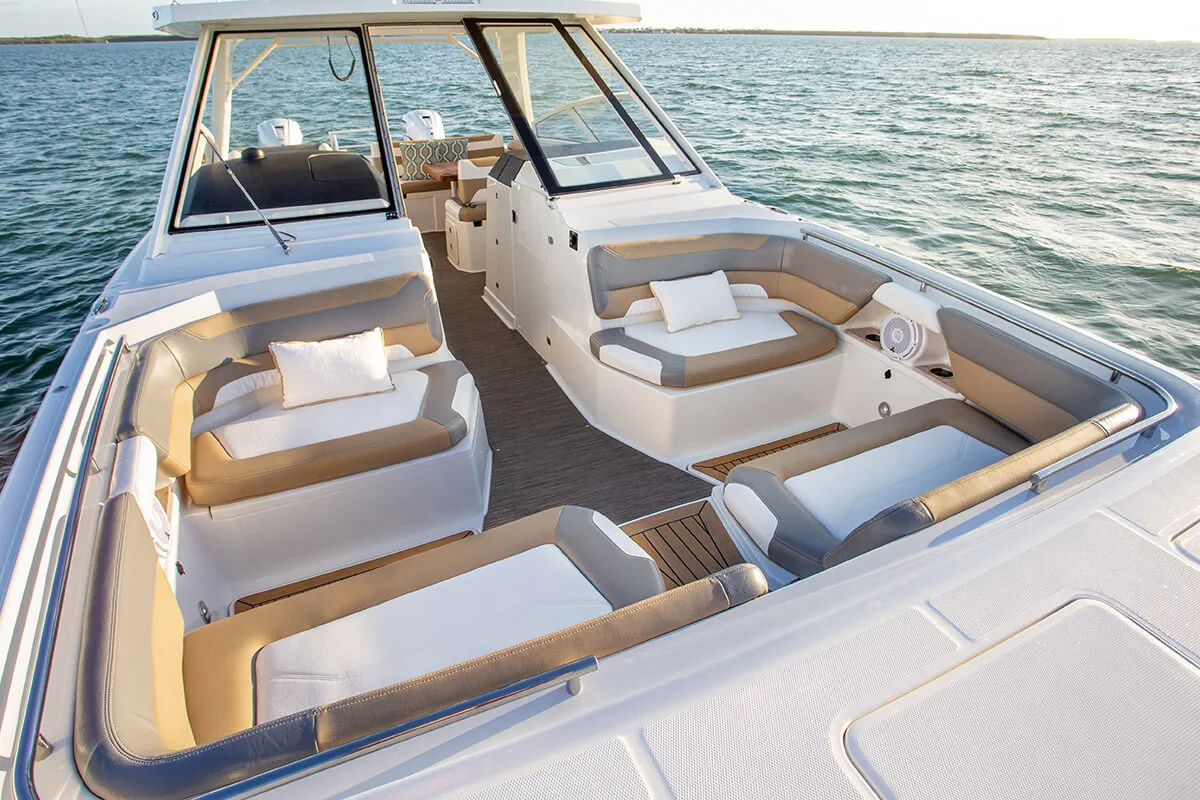

Single-level Island deck. Bow seating that actually holds people.
Factory current · official GCC desk
World Cat 400DC-X Island specifications.
July 2026 factory sheet. Twin hulls. Island dual-console layout. The fishing sister is the 400CC-X.
39′8″LOA · 12′8″ beam
1,200hpmax · twin 600s
464galfuel · 1,756 L
25″hull draft
| Specifications · 400DC-X Island · July 2026 sheet | |
|---|---|
| Length overall | 39′8″ (12.09 m) |
| Beam | 12′8″ (3.86 m) |
| Hull draft | 25″ (0.64 m) |
| Bridge clearance | 8′6″ (2.59 m) |
| Dry weight with power, approx. | 16,500 lbs (7,484 kg) |
| Maximum horsepower | 1,200 hp (twin 600 hp) |
| Factory engine packages | Twin Mercury 425 V10 · twin Mercury 600 V12 · twin Yamaha XF450 |
| Fuel | 464 gal (2 × 232 gal) · 1,756 L |
| Freshwater | 52 gal (197 L) |
| Wastewater | 13 gal (49 L) |
| Livewell | 25 gal (95 L) |
| Typical cruise / WOT* | 22.2 mph · 0.9 mpg / 53.8 mph · 0.5 mpg (*max power and typical options, Mercury V12 600s) |
All figures subject to change. Confirm on the current Tarboro sheet before the order is signed. 400DC-X Island spec PDF
On the hull · factory highlights
- VectorFlo twin hull · single-level deck · 200+ sq ft usable
- Island dual-console layout with best-in-class headroom
- Port berth: convertible couch/daybed, microwave, air-conditioning outlets
- Through-hull anchor with stainless windlass, fresh and raw washdown
- Expansive bow seating
- Hull colours on the current sheet: Arniston Gray, Ice Blue, Coastal Blue, Shackleford Sand, Annapolis Blue
Joystick, Seakeeper and glass stay on the Dubai order.

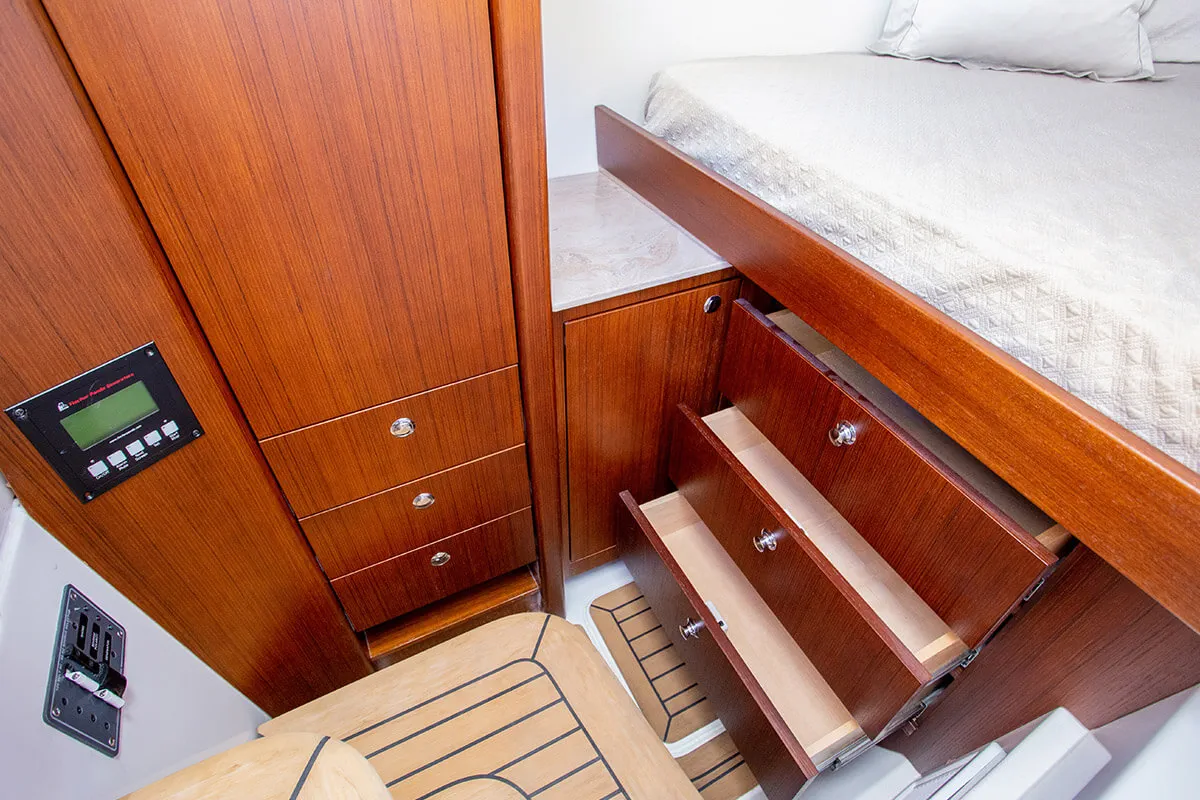

Below

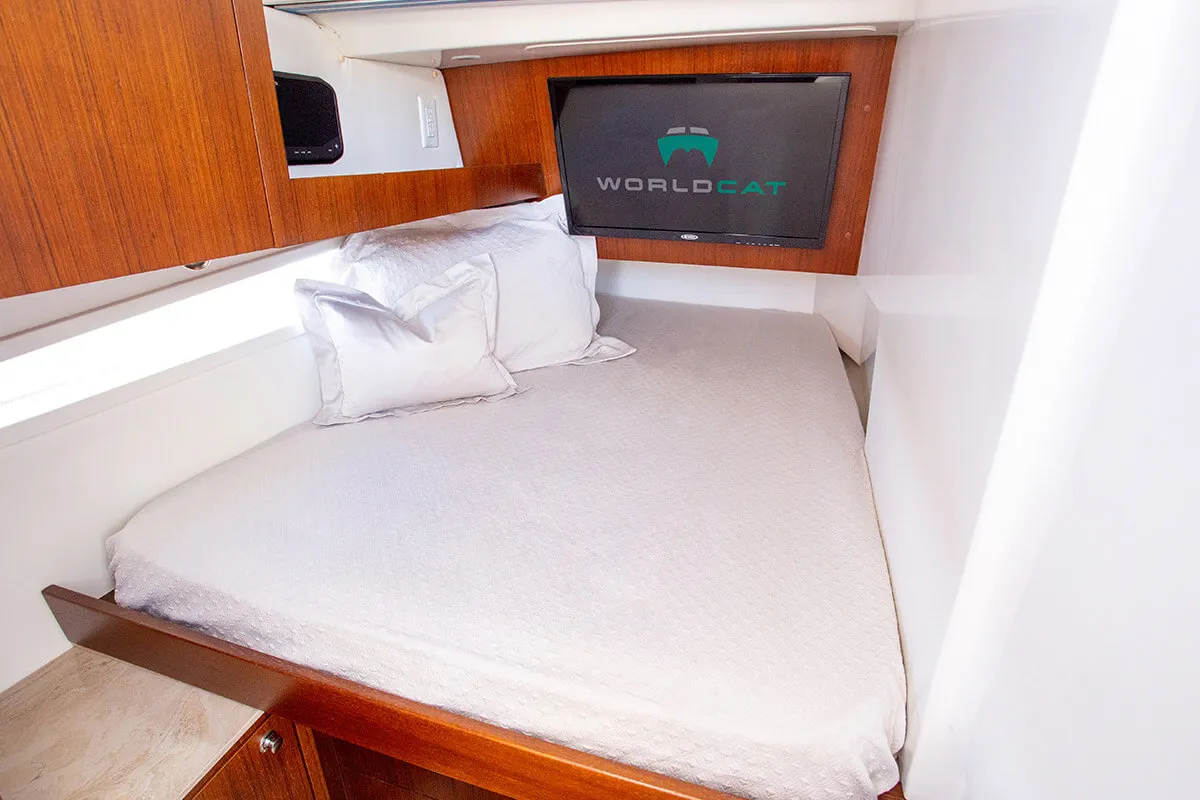

A berth that works
Convertible daybed, microwave, air. First light is still a fishing morning.
Day
The family 40

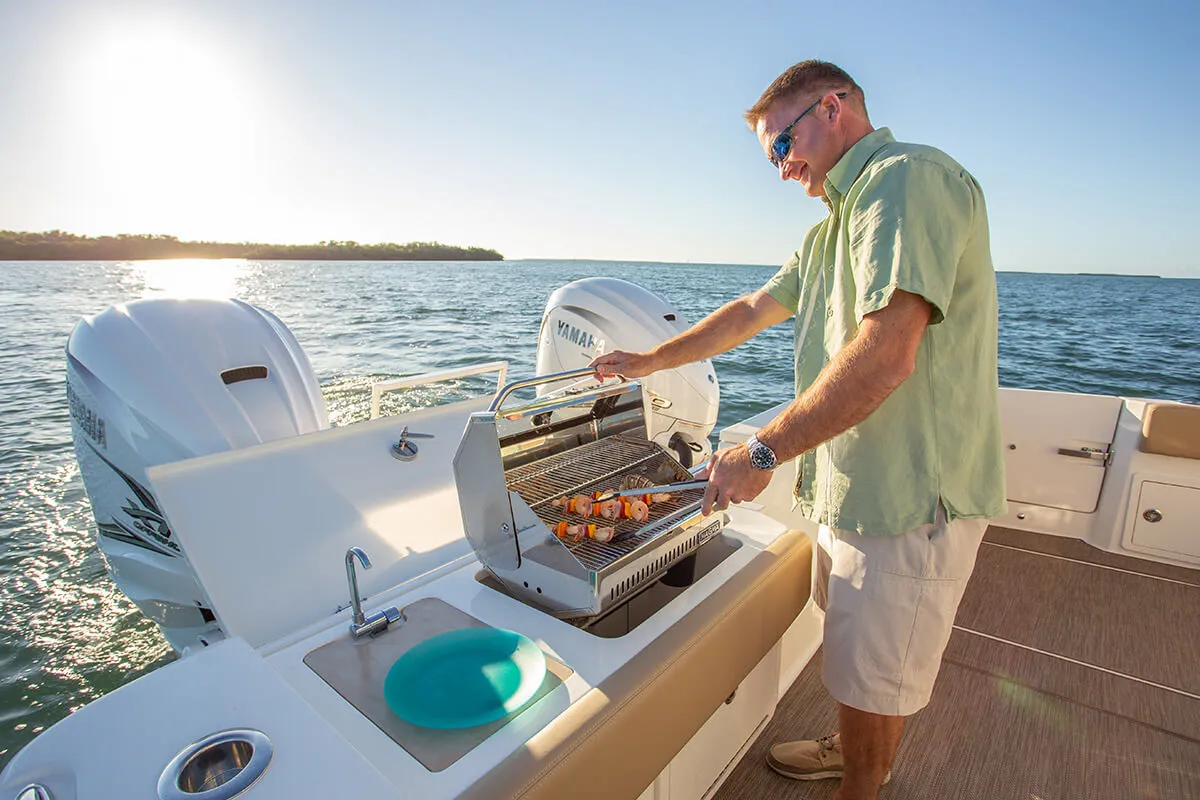

Grill, shade, a deck that does not slam when the Gulf stands up.
The desk
Official GCC
Specified from Dubai. Delivered to any major port.
